Far Infrared Floor Heating System

Specially Designed for wooden flooring

Contact Us Now! A house is a home given the warmth of a floor heating system.

What’s Special About MITAKE Thermal Membrane?

UNIQUE MATERIAL WITH PATENT TECHNOLOGY

PTC HEATING MEMBRANE

The MITAKE system from Japan is a planar heating element, following the concept of point-line-face, can raise the surface temperature of the floor planks in the shortest time possible, while the PTC automatic temperature control can allow extended carpeted coverage without undue abnormal temperature increase.
地暖地熱發熱地板恆溫地暖鈞泰工程 Certified 10 years product warranty!

Health

Far infrared rays – Release far infrared rays, warm from inside out, promote human health.

Health

Far infrared rays – Release far infrared rays, warm from inside out, promote human health.

Advantages of remote infrared floor heating

Far Infrared Floor Heating releases 4 to 20 micrometers of “cultivated far infrared lightwave”, which is equivalent to the infrared wavelength band for use in physiotherapy, it can resonate with water molecules in human cells, improve somatosensory temperature and accelerate blood circulation. It can also promote metabolism, improve immunity, activate cells, enhance tissue regeneration, inhibit aging, keep head cool and feet warm and make you stay comfortable and healthy, especially suitable for both elderly and children.

地暖地熱發熱地板恆溫地暖鈞泰工程

Safety

No overheating problem – Furnitures can be freely placed anywhere, no need to worry about covering up by objects.

Safety

No overheating problem – Furnitures can be freely placed anywhere, no need to worry about covering up by objects.

Exceeding 100,000 hours of performance testing

The PTC planar heating element has gone through durability test of 100,000 hours since the test began as early as 1997, the test is still been continued. As of to date, the PTC planar heating element still maintains its original functional performance. 100,000 hours of continual operation amounts to a 12 years duration, if to be based on 8 hours a day, 5 months a year, it could be used for 83 years.

地暖地熱發熱地板恆溫地暖鈞泰工程

PTC automatic temperature control can regulate the power consumption

PTC (Positive Temperature Coefficient =正温度係数) is a unique material and technology that we could be proud of. It can regulate heat according to the temperature of the local area. That is to say, when some areas that are obstructed by physical objects, furniture or due to presence of direct sunlight, the PTC automatic temperature control technology can automatically adjust to increase or decrease the impedance of the heating element. This special feature can truly make our floor heating system safe and energy efficient.

地暖地熱發熱地板恆溫地暖鈞泰工程

Humidity

Solution to the spring humid climate – When room temperature increases by 1 °c, the relative humidity level drops by 4-5%. It can further prevent the growth of mold, bacteria, and improve skin and respiratory allergies.

Humidity

Solution to the spring humid climate – When room temperature increases by 1 °c, the relative humidity level drops by 4-5%. It can further prevent the growth of mold, bacteria, and improve skin and respiratory allergies.

Test result

The floor heating system is the solution to the high air humidity during rainy seasons around Spring and Summer. When the room temperature increases by 1 °c, the relative humidity level drops by 4-5%.
This can also prevent the growth of mildew and mold and improves skin and respiratory allergies. Furthermore, moisture will be heated up through the floor to balance the overall space humidity.
This avoid cold and humid air from sinking to the ground.

地暖地熱發熱地板恆溫地暖鈞泰工程

Energy Saving

Lower energy consumption than constant power floor heating – Frequency conversion temperature control, the power consumption to constant temperature drops by about 50%, which amounts to 20% lower than constant power floor heating. Automatic control of power heating in each area.

Energy Saving

Lower energy consumption than constant power floor heating – Frequency conversion temperature control, the power consumption to constant temperature drops by about 50%, which amounts to 20% lower than constant power floor heating. Automatic control of power heating in each area.

Cost Comparison 地暖地熱發熱地板恆溫地暖鈞泰工程

MITAKE PTC heating principle

Energy Saving

40%

地暖地熱發熱地板恆溫地暖鈞泰工程

The changes of temperature heating

At the initial stage of energization, heat generation performance will be relatively high, where temperature rises within a short duration,thereafter a constant temperature is maintained. Since the response to the temperature change is performed automatically, the power consumption is self-regulatory and the operation is stable at about 1/2 to 1/3 of the initial input power. In addition, the power control by the PTC temperature controller further helps reduction of electricity cost.

地暖地熱發熱地板恆溫地暖鈞泰工程

Waiting time

Just need 15-30 mins to pre-heat, ready to use immediately.

Heating Cable

60+min

Over an hour

Mitake

15-30min

ONlY 15-30 mins

Win

Hydronic Floor Heating

120+min

Over 2 hours

Installation

No Change in Installation Framework

Maintain original wooden floor installation framework, no extra work on pouring concrete slab, overall thickness will only increase by 30mm plus.
Can be fixed by blind nails and floated interlock.

地暖地熱發熱地板恆溫地暖鈞泰工程

Comparison

	Win MITAKE PTC heating membrane	Other heating membrane brands	Other heating cable brands
Installation method	Directly place on plywood		Directly place on plywood	Must install in the concrete
Heating method	PTC (Positive Temperature Coefficient)	Single output power		Single output power
Safety	No overheating problem	Potential section overheating problem, results in “low temperature burns”		Potential section overheating problem, results in “low temperature burns”
Application surface	Wooden floor, Laminate floor, SPC floor	Wooden floor (Not recommended as wooden floor may be burnt caused by over heating)	Wooden floor (Not recommended as wooden floor may be burnt caused by over heating)
Furniture placement	Free relocation of furniture anywhere on top of heating membrane installed area	Future relocation of furniture is restricted to area without installing the heating cable/ membrane, otherwise risk of overheating		Future relocation of furniture is restricted to area without installing the heating cable/ membrane, otherwise risk of overheating
Waiting time	15-30 mins	15-30 mins, without PTC automatic temperature control	aluminum plate: 1 hour With cement: 2-3 hours
Energy saving	PTC (Positive Temperature Coefficient)	X	X
Far infrared rays	✔ benefit to health	X	X

Specifications

TECHNICAL ITEM	MITAKE
Rated voltage	220V (±5%)
Electric current	50Hz
Starting power	0.14A/pc
Constant power	0.07A/pc
Surface heating time	2-3 minutes
Heating material	High molecular PTC carbon nano conductive particles
Heating material surface temperature (winter)	37-40°C
Floor surface temperature (winter)	≥29°C
Insulation resistance	≥500MΩ
Electrothermal radiation conversion rate	>97%
Formaldehyde, Benzene, TVOC	Nil
Remote infrared	Release 5-15µm light ware
Dimensions	40m²/ roll
Manufacturer	ミタケ電子工業株式会社
Country of manufacture	Japan

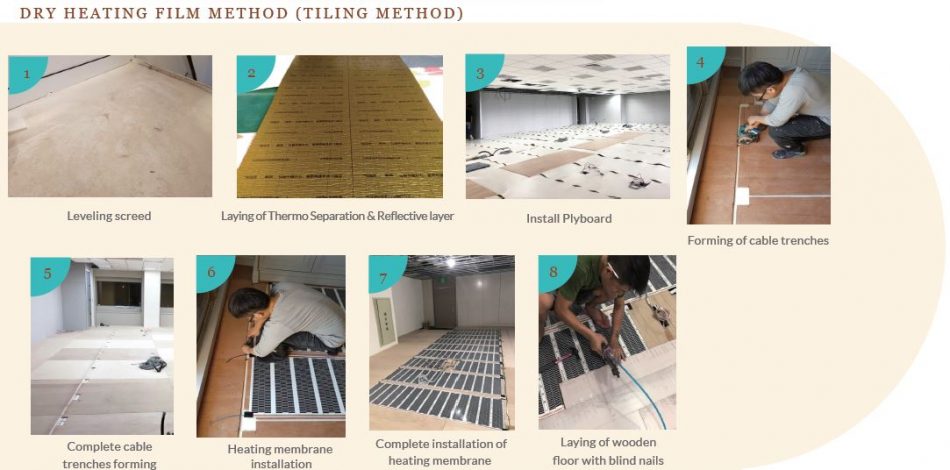

Installing MITAKE Thermal Membrane on Wooden Floor

Controller

HALMBURGER(HT8516)

Programmable Monitor Thermostat
Dimension: 86 x 90 x 13 mm
Voltage: AC230 16A (Load Current)
Temperature range: 5-50°C
Double temperature with dual controller: IP20

HAILIN (綠動WIFI)

Smart LCD Touch Monitor Thermostat
Dimension: 86 x 86 x 15.8 mm
Voltage: AC 85-250v, 50/60 HZ 16A (Loan Current)
Set temperature range: 5-35°C
Double temperature with single controller: IP30

Workflow

1

Customers call to inquire and provide floor plan of unit for floor heating planning.

2

Discuss the extent of the floor heating with the designer and/ or the owner.

3

Signing of contract and payment of deposit after confirmation of the scope of work.

4

Site inspection by electrical and mechanical personal, and direction to site representative to secure power supply to thedesignated thermostat locations.

5

Company to inspect upon confirmation of power supply arrangement is in order.

6

10 days’ notice be given in advance of actual implementation on site.

7

Joint inspection with landlord and/ or designer of phased completion.

8

Payment upon certified completion according to the contract conditions.

9

MITAKE offered a 10-year warranty with computer record and regular update.
